Simple payments

The Simple payments project is designed to help you build a simple contract that transfers value between two accounts. Because a blockchain acts as a digital ledger, transferring value between accounts is one of the most common blockchain operations. Knowing how to create a smart contract that can securely transfer assets is one of the most important building blocks that will enable you to create more complex applications.

For this project, you'll create one Pact payments module smart contract that consists of three functions:

  • create-account
  • get-balance
  • pay

These functions store information in a payments-table database table. The payments-table manages payments between two test accounts named Sarah and James.

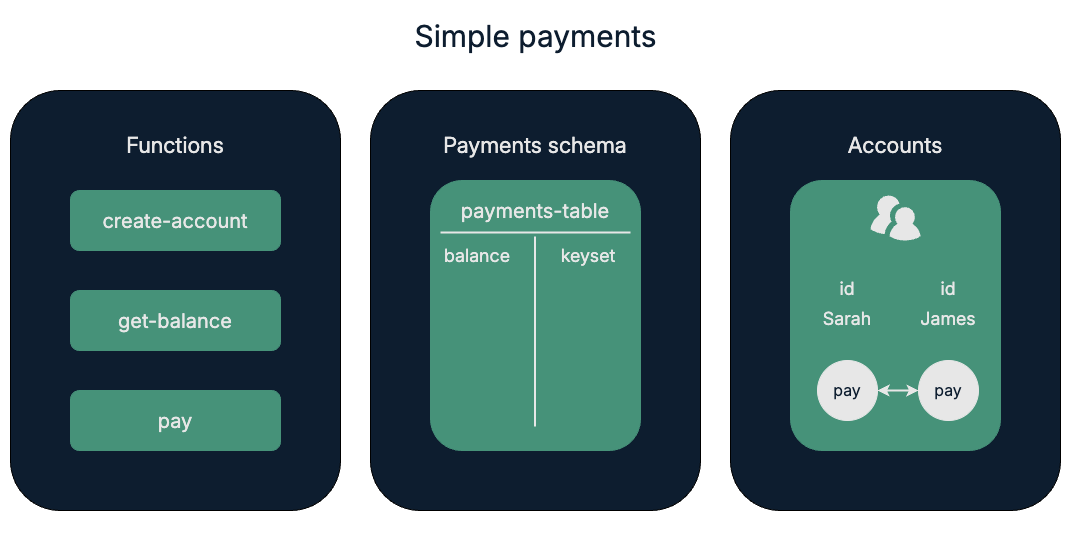

Simple payments project overview

Before you begin​

Before starting this project, verify your environment meets the following basic requirements:

  • You have a GitHub account and can run git commands.
  • You have installed the Pact programming language and command-line interpreter.
  • You have installed the kadena-cli package and have a working directory with initial configuration settings.
  • You have a local development node that you can connect to that runs the chainweb-node program, either in a Docker container or on a physical or virtual computer.
  • You must have at least one account that's funded with KDA on at least one chain for deployment on the local development network or the Kadena test network.
  • You should be familiar with the basics for defining modules and using keysets.

Get the starter code​

To get started:

  1. Open a terminal shell on your computer.

  2. Clone the pact-coding-projects repository by running the following command:

    git clone https://github.com/kadena-docs/pact-coding-projects.git

  3. Change to the 01-simple-payment directory by running the following command:

    cd pact-coding-projects/01-simple-payment

    If you list the contents of this directory, you'll see the following files:

    • starter-simple-payment.pact provides a starting point with the framework for the project code and comments for every challenge.
    • simple-payment.pact contains the final solution code that can be deployed.
    • test-simple-payment.repl provides a simplified example of a test file that illustrates using REPL-only functions for testing contracts locally.
    • simple-payment.repl provides a complete test file for testing the final simple-payment.pact contract.

  4. Open and review the starter-simple-payment.pact file.

    This file describes all of the tasks that you need to complete for the Simple payments coding project. You can follow the instructions embedded in the file to try to tackle this coding project on your own without looking at the solutions to each step, or follow the instructions in the next sections if you need additional guidance.

Define a namespace, keyset, and module​

The module declaration is a core part of any Pact smart contract. To define a module, you must also specify the administrative keyset or governance capability that owns the module.

For local development, you can define a module without using the context of a namespace. However, if you want to deploy modules, you should learn how to work with namespaces and namespace keysets.

For this coding project, you'll define a custom namespace to serve as context for one Pact module—the payments module—and the administrative keyset to use in the namespace as the owner of the payments module.

To start the module declaration:

  1. Open the starter-simple-payment.pact file in your code editor and save it as simple-payment.pact.

  2. Define a custom local namespace that can only be controlled and accessed by the admin-keyset you define.

    (define-namespace "dev" (read-keyset "admin-keyset") (read-keyset "admin-keyset"))

  3. Set the namespace you defined to be the active namespace.

    (namespace "dev")

  4. Define namespace administrative keyset by reading the admin-keyset.

    (define-keyset "dev.admin-keyset" (read-keyset "admin-keyset"))

    In essence, this line creates an administrative keyset by reading the admin-keyset data—one or more public keys and a predicate function—from a message payload or passed in as environment data. The admin-keyset data looks similar to the following:

    {"admin-keyset":{ "keys": ["fe4b6da332193cce4d3bd1ebdc716a0e4c3954f265c5fddd6574518827f608b7"], "pred": "keys-all" } }

    Note that you can use the standard string notation with double quotation marks("admin-keyset") or symbol notation with a single quotation mark ('admin-keyset) for identifiers. For more information about string literals used as identifiers, see Symbols.

  5. Create a module named payments that is governed by the dev.admin-keyset.

    (module payments "dev.admin-keyset"
      ;; Module declaration
    )

  6. Save your changes.

    Now that you have a module, you need to add the code for this module inside of the payments declaration—that is, before the closing parenthesis that marks the end of the module declaration.

    For more information about defining modules, see Modules and references and the description of the module keyword.

Define a schema and table​

The payments module stores information about accounts and balances in the payments-table database table. This table keeps track of the balance of the accounts that are associated with the Sarah and James account keysets. The schema for the payments-table looks like this:

Field nameField type
balancedecimal
keysetguard

To define the schema and table:

  1. Open the modified simple-payment.pact file in your code editor.

  2. Define a payments schema for a table with the columns balance as type decimal and keyset as type guard.

      (defschema payments
         balance:decimal
         keyset:guard)

    It's worth noting that the row key for the table isn't defined in the schema for the table.

  3. Define the payments-table to use the {payments} schema you created in the previous step.

      (deftable payments-table:{payments})

  4. Move the closing parenthesis that marks the end of the payments module declaration after the table definition to include the schema and table definitions inside of the module.

    Without comments, your code should look similar to the following:

    (define-namespace "dev" (read-keyset "admin-keyset") (read-keyset "admin-keyset"))
      (namespace "dev")

      (define-keyset "dev.admin-keyset" (read-keyset "admin-keyset"))

    (module payments "dev.admin-keyset"

      (defschema payments
        balance:decimal
        keyset:guard)

      (deftable payments-table:{payments})
    )

  5. Save your changes.

    You now have a schema and table definition inside of the payments declaration.

    For more information about defining schemas and tables, see Database model.

Define functions​

For this coding project, the payments module provides three functions:

  • create-account to allow the module administrator to create accounts.
  • get-balance to allow the module administrator and account owner to view account balances.
  • pay to allow one account to pay another account.

Define the create-account function​

The create-account function allows the payments module administrator—identified by the dev.admin-keyset keyset—to create any number of accounts.

To define the create-account function:

  1. Open the modified simple-payment.pact file in your code editor.

  2. Start the create-account function definition with the keyword defun and add the parameters id, initial-balance, and keyset.

    (defun create-account:string (id:string initial-balance:decimal keyset:guard)

    )

  3. Within the function, use enforce-guard to ensure that all accounts are created by the dev.admin-keyset administrator.

      (enforce-guard "dev.admin-keyset")

  4. Within the function, use enforce to ensure the initial-balance is greater than or equal to zero and include an optional documentation string.

      (enforce (>= initial-balance 0.0) "Initial balances must be >= 0.")

  5. Within the function, insert the initial-balance and keyset into the payments-table using the id parameter to set the key-row value.

      (insert payments-table id
             { "balance": initial-balance,
               "keyset": keyset })

  6. Check that the closing parenthesis for the create-account function is after the last expression and move the closing parenthesis for the payments module declaration after the function.

    Without comments, your code should look similar to the following:

    (define-namespace "dev" (read-keyset "admin-keyset") (read-keyset "admin-keyset"))
      (namespace "dev")

      (define-keyset "dev.admin-keyset" (read-keyset "admin-keyset"))

    (module payments "dev.admin-keyset"

      (defschema payments
        balance:decimal
        keyset:guard)

      (deftable payments-table:{payments})

      (defun create-account:string (id:string initial-balance:decimal keyset:guard)
         (enforce-guard "dev.admin-keyset")
         (enforce (>= initial-balance 0.0) "Initial balances must be >= 0.")
         (insert payments-table id
             { "balance": initial-balance,
               "keyset": keyset })
      )
    )

Define the get-balance function​

Now that you can create accounts, it is helpful to be able to view the balance of these accounts. The get-balance function allows account owners and the module administrator to view account balances.

To define the get-balance function:

  1. Start the get-balance function definition with the keyword defun and the required argument to be the id key-row value.

      (defun get-balance (id:string)

      )

  2. Within the function, use with-read to view the id from the payments-table.

        (with-read payments-table id

  3. Within the function, use enforce-one to check that the keyset calling the function is either the dev.admin-keyset or the id keyset.

         (enforce-one "Access denied"
           [(enforce-guard keyset)
            (enforce-guard "dev.admin-keyset")])

  4. Within the function, return the balance for the specified id keyset.

         balance)

  5. Check that the closing parenthesis for the get-balance function is after the last expression and move the closing parenthesis for the payments module declaration after the function.

    Without comments, your code should look similar to the following:

    (define-namespace "dev" (read-keyset "admin-keyset") (read-keyset "admin-keyset"))
      (namespace "dev")
      (define-keyset "dev.admin-keyset" (read-keyset "admin-keyset"))

    (module payments "dev.admin-keyset"
      (defschema payments
        balance:decimal
        keyset:guard)
      (deftable payments-table:{payments})

      (defun create-account:string (id:string initial-balance:decimal keyset:guard)
        (enforce-guard "dev.admin-keyset")
        (enforce (>= initial-balance 0.0) "Initial balances must be >= 0.")
        (insert payments-table id
          { "balance": initial-balance,
            "keyset": keyset })
      )

      (defun get-balance:decimal (id:string)
         (with-read payments-table id
          { "balance":= balance, "keyset":= keyset }

         (enforce-one "Access denied"
           [(enforce-guard keyset)
            (enforce-guard "dev.admin-keyset")])
         balance)
      )
    )

Define the pay function​

The pay function allows one account to transfer assets to another account defined in the payments-table.

To define the pay function:

  1. Start the pay function definition with the keyword defun and specify the parameters as from, to, and amount.

      (defun pay:string (from:string to:string amount:decimal)

      )

  2. Within the function, use with-read to view the payments-table for the from account and bind the balance and keyset of this account to the from-bal and keyset variables.

        (with-read payments-table from { "balance":= from-bal, "keyset":= keyset }

  3. Within the function, enforce that the keyset is the keyset of the account.

          (enforce-guard keyset)

  4. Within the function, use with-read to get the balance of the to account, and bind this balance to the to-bal variable.

         (with-read payments-table to { "balance":= to-bal }

  5. Within the function, enforce that the amount being transferred is greater than zero or return an error message.

         (enforce (> amount 0.0) "Negative transaction amount")

  6. Within the function, enforce that balance for the from account is greater than what is being transferred or return an error message.

         (enforce (>= from-bal amount) "Insufficient funds")

  7. Within the function, update the payments-table to reflect the new balance for the from account.

         (update payments-table from
            { "balance": (- from-bal amount) })

  8. Within the function, update the payments-table to reflect the new balance for the to account.

         (update payments-table to
            { "balance": (+ to-bal amount) })

  9. Within the function, return a formatted string to say that the from account has paid the to account and the amount paid.

         (format "{} paid {} {}" [from to amount])))

  10. Check that the closing parenthesis for the pay function is after the last expression and move the closing parenthesis for the payments module declaration after the function.

    Without comments, your code should look similar to the following:

    (define-namespace "dev" (read-keyset "admin-keyset") (read-keyset "admin-keyset"))
      (namespace "dev")
      (define-keyset "dev.admin-keyset" (read-keyset "admin-keyset"))

    (module payments "dev.admin-keyset"
      (defschema payments
        balance:decimal
        keyset:guard)
      (deftable payments-table:{payments})

      (defun create-account:string (id:string initial-balance:decimal keyset:guard)
        (enforce-guard "dev.admin-keyset")
        (enforce (>= initial-balance 0.0) "Initial balances must be >= 0.")
        (insert payments-table id
          { "balance": initial-balance,
            "keyset": keyset })
      )

      (defun get-balance:decimal (id:string)
         (with-read payments-table id
          { "balance":= balance, "keyset":= keyset }

         (enforce-one "Access denied"
           [(enforce-guard keyset)
            (enforce-guard "dev.admin-keyset")])
         balance)
      )

      (defun pay:string (from:string to:string amount:decimal)
         (with-read payments-table from { "balance":= from-bal, "keyset":= keyset }
            (enforce-guard keyset)
            (with-read payments-table to { "balance":= to-bal }
              (enforce (> amount 0.0) "Negative transaction amount")
              (enforce (>= from-bal amount) "Insufficient funds")
              (update payments-table from
                      { "balance": (- from-bal amount) })
              (update payments-table to
                      { "balance": (+ to-bal amount) })
              (format "{} paid {} {}" [from to amount])
            )
          )
       )
    )

  11. Save your changes.

    The pay function is the last code that you need to include within the payments module.

Create the table​

Although you defined a schema and a table inside of the payments module, tables are created outside of the module code. This distinction between what you define inside of the module and outside of the module is important because the module acts as a guard to protect access to database functions and database records. This separation also allows module code to be potentially updated without replacing the table in Pact state.

To create the table:

  1. Open the modified simple-payment.pact file in your code editor.

  2. Locate the closing parenthesis for the payments module.

  3. Create the table using the create-table keyword.

    (create-table payments-table)

Create a file for local testing​

At this point, you have completed all of the essential code for the simple-payment.pact contract. However, you can't test or deploy the code in its current state. Because keysets are defined outside of contract code, the most common way to test a module locally is to create a test file that makes use of REPL-only built-in functions to simulate data that must be provided by the environment, like keysets and signatures. In this part of the project, you'll see how to create a test file—the simple-payment.repl file—to call REPL-only functions to test the functions you've defined in the payments module.

To create the test file:

  1. Copy the simple-payment.pact file and rename the file as test-simple-payment.repl.

  2. Open the test-simple-payment.repl file in your code editor.

  3. Add the env-data built-in function to set environment data to simulate keyset information.

    ;; Set keyset information
    (env-data
        { "admin-keyset" :
          { 'keys : [ 'admin-public-key ]
          , 'pred : 'keys-all
          }
        }
    )

  4. Add the env-sigs built-in function to set the key for signing transactions in your environment.

    ;; Add a signature for signing transactions
    (env-sigs
      [{ 'key  : 'admin-public-key
       , 'caps : []
      }]
    )

  5. Add a transaction using the begin-tx and commit-tx built-in functions to define a namespace and keyset for your module.

    (begin-tx "Define a namespace and keyset")

      (define-namespace "dev" (read-keyset "admin-keyset") (read-keyset "admin-keyset"))
      (namespace "dev")
      (expect
         "A keyset can be defined"
         "Keyset write success"
        (define-keyset "dev.admin-keyset" (read-keyset "admin-keyset")))
    (commit-tx)

    Namespaces are required to define a context for modules when they are deployed on a network.

    This example also uses the expect built-in function to test the assertion that the keyset can be defined.

  6. Add the begin-tx function before the module declaration, ans scroll to the bottom of the file and add the closing commit-tx function.

    (begin-tx "Crete module")
      (module payments "dev.admin-keyset"

        (defschema payments
          balance:decimal
          keyset:guard)

        (deftable payments-table:{payments})

        (defun create-account:string (id:string initial-balance:decimal keyset:guard)
          (enforce-guard "dev.admin-keyset")
          (enforce (>= initial-balance 0.0) "Initial balances must be >= 0.")
          (insert payments-table id
            { "balance": initial-balance,
              "keyset": keyset })
        )

        (defun get-balance:decimal (id:string)
          (with-read payments-table id
            { "balance":= balance, "keyset":= keyset }
            (enforce-one "Access denied"
            [(enforce-guard keyset)
             (enforce-guard "dev.admin-keyset")])
          balance)
        )

        (defun pay:string (from:string to:string amount:decimal)
          (with-read payments-table from { "balance":= from-bal, "keyset":= keyset }
            (enforce-guard keyset)
            (with-read payments-table to { "balance":= to-bal }
              (enforce (> amount 0.0) "Negative transaction amount")
              (enforce (>= from-bal amount) "Insufficient funds")
              (update payments-table from
                 { "balance": (- from-bal amount) })
                 (update payments-table to
                 { "balance": (+ to-bal amount) })
              (format "{} paid {} {}" [from to amount])
            )
          )
        )
      )
    (create-table payments-table)
    (commit-tx)

  7. Add a transaction for testing that only the administrator can create accounts.

    (begin-tx "Test creating account")
    ;; Call the payments module into scope for this transaction.
      (use payments)
      ;; Clear keys from the environment.
      (env-keys [""])
      ;; Define the keysets for Sarah and James.
      (env-data {
        "sarah-keyset": {"keys": ["sarah-key"]},
        "james-keyset": {"keys": ["james-key"]}})

      ;; Try creating the Sarah account without the admin keyset defined.
      (expect-failure "Admin Keyset is missing" "Keyset failure (keys-all): [admin-pu...]" (create-account "Sarah" 100.25 (read-keyset "sarah-keyset")))

      (env-keys ["admin-public-key"])

      ;; Create the Sarah account the proper admin keyset defined.
       (expect "Admin Keyset is present" "Write succeeded" (create-account "Sarah" 100.25 (read-keyset "sarah-keyset")))

       ;; Create the James account with initial value of 250.0.
       (create-account "James" 250.0 (read-keyset "james-keyset"))

    (commit-tx)

  8. Add a transaction for testing that one account can pay another account.

    (begin-tx "Test making a payment")
      (use payments)
      (env-keys ["sarah-key"])
      (pay "Sarah" "James" 25.0)
    (commit-tx)

  9. Add a transaction for testing that an account owner can view the account balance.

    (begin-tx "Test reading balances")
      (use payments)
      (env-keys ["sarah-key"])
      ;; Read Sarah's balance as Sarah.
      (format "Sarah's balance is {}" [(get-balance "Sarah")])

      (env-keys ["james-key"])
      ;; Read James' balance as James.
      (format "James's balance is {}" [(get-balance "James")])
    (commit-tx)

  10. Open a terminal shell on your computer and test execution by running the following command:

    pact test-simple-payment.repl --trace

    You should see output similar to the following:

    test-simple-payment.repl:1:0-7:1:Trace: "Setting transaction data"
    test-simple-payment.repl:9:0-13:1:Trace: "Setting transaction signatures/caps"
    test-simple-payment.repl:15:0-15:42:Trace: "Begin Tx 0 Define a namespace and keyset"
    test-simple-payment.repl:17:2-17:84:Trace: "Namespace defined: dev"
    test-simple-payment.repl:18:2-18:19:Trace: "Namespace set to dev"
    test-simple-payment.repl:19:2-22:68:Trace: "Expect: success A keyset can be defined"
    test-simple-payment.repl:23:0-23:11:Trace: "Commit Tx 0 Define a namespace and keyset"
    test-simple-payment.repl:25:0-25:25:Trace: "Begin Tx 1 Crete module"
    test-simple-payment.repl:26:2-65:3:Trace: Loaded module payments, hash Y5S8S1dbBPRER7kbAWxXnowfOjQ7pwPywwwmIidAPTE
    test-simple-payment.repl:66:0-66:29:Trace: "TableCreated"
    test-simple-payment.repl:67:0-67:11:Trace: "Commit Tx 1 Crete module"
    test-simple-payment.repl:69:0-69:34:Trace: "Begin Tx 2 Test creating account"
    test-simple-payment.repl:71:2-71:16:Trace: Loaded imports from payments
    test-simple-payment.repl:73:2-73:17:Trace: "Setting transaction keys"
    test-simple-payment.repl:75:2-77:45:Trace: "Setting transaction data"
    test-simple-payment.repl:80:0-80:146:Trace: "Expect failure: Success: Admin Keyset is missing"
    test-simple-payment.repl:82:0-82:31:Trace: "Setting transaction keys"
    test-simple-payment.repl:85:0-85:113:Trace: "Expect: success Admin Keyset is present"
    test-simple-payment.repl:88:0-88:59:Trace: "Write succeeded"
    test-simple-payment.repl:90:0-90:11:Trace: "Commit Tx 2 Test creating account"
    test-simple-payment.repl:92:0-92:34:Trace: "Begin Tx 3 Test making a payment"
    test-simple-payment.repl:93:2-93:16:Trace: Loaded imports from payments
    test-simple-payment.repl:94:2-94:26:Trace: "Setting transaction keys"
    test-simple-payment.repl:95:2-95:28:Trace: "Sarah paid James 25.0"
    test-simple-payment.repl:96:0-96:11:Trace: "Commit Tx 3 Test making a payment"
    test-simple-payment.repl:98:0-98:34:Trace: "Begin Tx 4 Test reading balances"
    test-simple-payment.repl:99:2-99:16:Trace: Loaded imports from payments
    test-simple-payment.repl:100:2-100:26:Trace: "Setting transaction keys"
    test-simple-payment.repl:102:2-102:58:Trace: "Sarah's balance is 75.25"
    test-simple-payment.repl:104:2-104:26:Trace: "Setting transaction keys"
    test-simple-payment.repl:106:2-106:58:Trace: "James's balance is 275.0"
    test-simple-payment.repl:107:0-107:11:Trace: "Commit Tx 4 Test reading balances"
    Load successful

    This sample test file demonstrates adding REPL built-in functions around the Pact code. A more common approach to testing Pact modules involves separating environment data into an init.repl file and then loading the init.repl file and the Pact .pact module file for more streamlined testing. For examples of other ways to test the simple-payment.pact module, see:

    • simple-payment.repl demonstrates loading a Pact module to test its functions rather than including the module in the .repl file.
    • init.repl demonstrates creating a separate .repl file for setting up environment data outside of the module.
    • use-init-simple-payment.repl demonstrates a .repl file that uses the init.repl file.

Deploy the contract​

After testing the contract using the Pact interpreter and the REPL file, you can deploy the contract on your local development network or the Kadena test network.

However, you must deploy to an existing namespace—such as the free namespace—or a registered principal namespace to deploy on any Kadena network. If you want to deploy in an existing namespace, you must also ensure that your module name and keyset name are unique across all of the modules that exist in that namespace.

Prepare to deploy​

To deploy to the free namespace:

  • Remove the define-namespace function.

  • Replace all occurrences of the custom "dev" namespace with "free".

  • Modify the module and keyset names to make them unique in the free namespace.

    (namespace "free")
    (define-keyset "free.pistolas-project" (read-keyset "pistolas-project"))
    (module pistolas-payments "free.pistolas-project" ...)

To deploy to a private namespace:

  • Modify the define-namespace function to use the ns.create-principal-namespace function to define a unique principal namespace for your public key.
  • Replace all occurrences of the custom "dev" namespace with a principal namespace similar to the following "n_1cc1f83c56f53b8865cc23a61e36d4b17e73ce9e".

In general, the best practice is to create a principal namespace for all of your modules and keysets.

Verify network, chain, and account information​

Before you deploy on the local development network, verify the following:

  • The development network is currently running on your local computer.

  • You have at least one account with funds on at least one chain in the development network.

    If you don't have keys and at least one account on any chain on the network, you need to generate keys, create an account, and fund the account on at least one chain before continuing.

  • You have the public key for the account on the chain where you have funds.

Create a principal namespace​

For this coding project, you can define a principal namespace by executing a transaction using the following simple-define-namespace.ktpl transaction template.

code: |-
  (define-namespace (ns.create-principal-namespace (read-keyset "k")) (read-keyset "k") (read-keyset "k"))
data:
  {
    "k": [
        "{{public-key}}"
    ]
  }
meta:
  chainId: "{{chain-id}}"
  sender: "{{{sender-account}}}"
  gasLimit: 80300
  gasPrice: 0.000001
  ttl: 600
signers:
  - public: "{{public-key}}"
    caps:
      - name: "coin.GAS"
        args: []
networkId: "{{network-id}}"

You can use kadena tx add to replace the variables in the template with the values for your public key, sender account, chain, and network. For example:

? Which template do you want to use: simple-define-namespace.ktpl
? File path of data to use for template .json or .yaml (optional):
? Template value public-key:
a6731ce787ece3941fcf28ce6ccf58150b55a23310e242f4bcb0498c93119689
? Template value chain-id: 3
? Template value sender-account:
k:a6731ce787ece3941fcf28ce6ccf58150b55a23310e242f4bcb0498c93119689
? Template value network-id: development
? Where do you want to save the output: myNamespace

After you save the transaction to a file, you can use kadena tx sign to sign the transaction with your wallet password or public and secret keys.

After signing the transaction, you can use kadena tx send to send the transaction to the blockchain network.

After the transaction is complete, copy the principal namespace from the transaction results and use it to replace all occurrences of the original "dev" namespace.

(namespace "n_1cc1f83c56f53b8865cc23a61e36d4b17e73ce9e")
(define-keyset "n_1cc1f83c56f53b8865cc23a61e36d4b17e73ce9e.admin-keyset" (read-keyset "admin-keyset"))
(module payments "n_1cc1f83c56f53b8865cc23a61e36d4b17e73ce9e.admin-keyset" ...)

Create a deployment transaction​

You can deploy the simple-payment.pact module on the local development network using the same workflow of kadena tx add, sign, and send commands that you used to execute the define-namespace transaction.

To deploy the module:

  1. Create a new transaction template named simple-payment.ktpl in the ~/.kadena/transaction-templates folder.

    cd ~/.kadena/transaction-templates
    touch simple-payment.ktpl

  2. Open the simple-payment.ktpl file in a code editor and create a reusable transaction request in YAML format similar to the following to specify the path to the simple-payment.pact file that contains your Pact module code.

    codeFile: "../../simple-payment.pact"
    data:
      admin-keyset:
        keys: ["{{public-key}}"]
        pred: "keys-all"
    meta:
      chainId: "{{chain-id}}"
      sender: "{{{sender-account}}}"
      gasLimit: 80300
      gasPrice: 0.000001
      ttl: 600
    signers:
      - public: "{{public-key}}"
        caps: []
    networkId: "{{network-id}}"

  3. Create a transaction that uses the template by running the kadena tx add command and following the prompts displayed.

    For example:

    ? Which template do you want to use: simple-payment.ktpl
    ? File path of data to use for template .json or .yaml (optional):
    ? Template value public-key: a6731ce7...93119689
    ? Template value chain-id: 3
    ? Template value sender-account: k:a6731ce7...93119689
    ? Template value network-id: development
    ? Where do you want to save the output: deploy-simple-payment

    In this example, the unsigned transaction is saved in a deploy-simple-payment.json file.

  4. Sign the transaction by running the kadena tx sign command and following the prompts displayed to sign with a wallet account or a public and secret key pair.

    For example:

    ? Select an action: Sign with wallet
    ? Select a transaction file: Transaction: deploy-simple-payment.json
    ? 1 wallets found containing the keys for signing this transaction, please select a wallet to sign this transaction with first: Wallet: pistolas
    ? Enter the wallet password: ********

  5. Send the transaction by running the kadena tx send command and following the prompts displayed.

    After the transaction is complete, you should see the message TableCreated in the transaction results.

Create additional transactions​

After you deploy the module, you can create additional transactions to verify contract functions running on the development network. For example, you can create a transaction template for the payments.create-account function similar to the following:

code: |-
   (n_1cc1f83c56f53b8865cc23a61e36d4b17e73ce9e.payments.create-account "{{{new-account-name}}}" {{balance}} (read-keyset "account-guard"))
data:
   account-guard:
      keys:
      - {{{publicKey}}}
      pred: "keys-all"
meta:
   chainId: "{{chain-id}}"
   sender: "k:a6731ce787ece3941fcf28ce6ccf58150b55a23310e242f4bcb0498c93119689"
   gasLimit: 2000
   gasPrice: 0.00000001
   ttl: 7200
signers:
   - public: "a6731ce787ece3941fcf28ce6ccf58150b55a23310e242f4bcb0498c93119689"
      caps: []
networkId: "{{network:networkId}}"
type: exec

With this template, you can create an account for Sarah with an initial balance of 100.25 and an account for James with an initial balance of 250.0, equivalent to executing calls like the following in the Pact REPL:

(dev.payments.create-account "Sarah" 100.25 (read-keyset "sarah-keyset"))
"Write succeeded"

(dev.payments.create-account "James" 250.0 (read-keyset "james-keyset"))
"Write succeeded"

You can also create transaction templates for the pay and get-balance functions. For example, you can create a transaction for the pay function with a template similar to the following:

code: |-
  (n_1cc1f83c56f53b8865cc23a61e36d4b17e73ce9e.payments.pay "{{sender-id}}" "{{receiver-id}}" {{amount}})
data:
meta:
  chainId: "{{chain-id}}"
  sender: "{{sender-k-account}}"
  gasLimit: 2000
  gasPrice: 0.00000001
  ttl: 7200
signers:
  - public: "{{sender-publicKey}}"
    caps: []
networkId: "{{network:networkId}}"
type: exec

With this template, you can create an transaction for Sarah to pay James 25.0, equivalent to executing the following call in the Pact REPL:

(dev.payments.pay "Sarah" "James" 25.0)
"Sarah paid James 25.0"

However, this transaction requires the account associated with Sarah to have an account and funds to pay for the transaction on the chain you specify. The account must also be associated with a wallet that you've created or imported into the Kadena CLI local development environment.

Similarly, you can create a transaction for the get-balance function with a template similar to the following:

code: |-
  (format "Sarah's balance is {}" [(n_1cc1f83c56f53b8865cc23a61e36d4b17e73ce9e.payments.get-balance "{{simple-payments-id}}")])
data:
meta:
  chainId: "{{chain-id}}"
  sender: "{{sender-k-account}}"
  gasLimit: 2000
  gasPrice: 0.00000001
  ttl: 7200
signers:
  - public: "{{sender-publicKey}}"
    caps: []
networkId: "{{network:networkId}}"
type: exec

With this template, you can create separate transactions for getting the balance for Sarah and getting the balance for James, equivalent to executing the following calls in the Pact REPL:

(format "Sarah's balance is {}" [(dev.payments.get-balance "Sarah")])
"Sarah's balance is 75.25"

(format "James's balance is {}" [(dev.payments.get-balance "James")])
"James's balance is 275.0"

Next steps​

Congratulations, you've just completed the Simple payments coding project. You'll see similar patterns in other coding projects, with each project introducing new features, Pact syntax, or alternative coding models. The coding projects are also intended to complement and reinforce concepts and examples presented in other parts of the documentation. Follow the links embedded in each project to learn more.
